Ing ngisor Seal Globe Valve

JQF Valve kualitas dhuwur bellow seal globe valve nduweni struktur bellow internal. Ing mburi ngisor bellows stainless steel wis gandheng kanggo tutup, nalika mburi liyane dipanggonke antarane awak tutup lan tutup tutup kanggo mbentuk segel statis. Bellow dilas menyang batang tutup kanggo njaga kinerja operasi sing stabil lan nyegah getaran batang katup sing disebabake getaran katup. Iku becik kanggo pipa sing nggawa uap, gampang kobong, mbledhos, lenga transfer panas, kemurnian dhuwur, lan media beracun.

Kirim Pitakonan

Deskripsi Produk

JQF Valve factory manufactures durable bellow seal globe valves suitable for cutting or connecting pipeline media under various working conditions in industries such as petroleum, chemical, pharmaceutical, fertilizer, and power. The nominal pressure is PN1.6～PN4.0MPa, and the working temperature is -20℃～350℃. The double robust and durable bellows seal design (bellows + packing) ensures zero leakage of the valve stem. At our company, you can find a wide variety of valves, flanges, pipe fittings, pipes, and other industrial accessories. Our engineers work tirelessly to innovate and improve our products to better serve our customers.

1. Optimasi Kualitas Komprehensif
Katup Globe Bellow Seal duwe struktur rasional, segel sing dipercaya, lan penampilan sing apik banget.
2. Lumahing Sealing awet
Katup Bellow Seal Globe dikuwatake karo campuran berbasis kobalt, menehi tahan nyandhang lan karat, resistensi gesekan sing sithik, lan umur sing luwih dawa.
3. Triple Stem Protection
Katup Bellow Seal Globe ngalami perawatan panas lan proses pengerasan permukaan sing luwih apik, nyebabake karat lan resistensi nyandhang sing luar biasa.
4. Double-Insurance Bellows Seal
Saluran aliran sudut tengen sing digabungake karo desain bellow sing dipatenake njamin segel sing luwih aman.
5. Posisi Opening Intuisi lan Visual
Posisi batang katup sing dituduhake kanthi jelas kanggo operasi intuisi.
6. Kustomisasi fleksibel lan adaptasi
Bahan komponen, ukuran flange, lan spesifikasi antarmuka bisa disesuaikan kanggo nyukupi kahanan operasi tartamtu.

Fitur:

1. Ing Bellow Seal Globe Valve ing saham fitur struktur nyoto lan sealing dipercaya. Desain segel bellows ganda sing kuat (bellow + packing) njamin kebocoran nol saka batang katup. Ora ana mundhut Cairan nambah safety peralatan tanduran lan ketemu standar sealing.
2. Permukaan sealing Bellow Seal Globe Valve dilapisi karo paduan keras adhedhasar Co, nyedhiyakake resistensi nyandhang sing apik, tahan karat, lan tahan abrasi, nyebabake umur layanan sing dawa. Indikator posisi angkat luwih intuisi.
3. Batang tutup ngalami quenching lan tempering lan perawatan nitriding lumahing, nyediakake resistance karat banget lan abang gesekan; Indikator posisi angkat gagang tutup luwih intuisi.

spesifikasi

jinis struktur	BB-BG
Mode drive	Manual
Mode drive	pneumatik
standar desain	DIN3356
Dawane struktur	DIN 3203
Sambungake flange	DIN2543-2545
Test lan pengawasan	DIN 3230

Bahan bagean produk

nomer seri	jeneng	Bahan
1	awak	GS-C25, CF8, CF3
2	Disk	2CR13, F304, F316
3	Pin poros	F304, F316
4	Majelis Bellows	F304, F316L
5	kap	GS-C25, CF8, CF3
6	pangisi	Grafit fleksibel, PTFE
7	Lengan tekanan	25#,F304,F316
8	Potongan posisi	25#,F304,F316
9	Nut batang	Tembaga wesi ZQA19-4
10	Roda tangan	Baja karbon
11	Lan topi	25#
12	Cangkir lenga	kuningan
13	Kacang hex	ASTMA193 2H, A193-8, A193-8M
14	Studs	ASTMA193 B7, A193-B8, A193-B8M
15	Gasket	Grafit fleksibel + baja tahan karat
16	Batang katup	2Cr13,F3

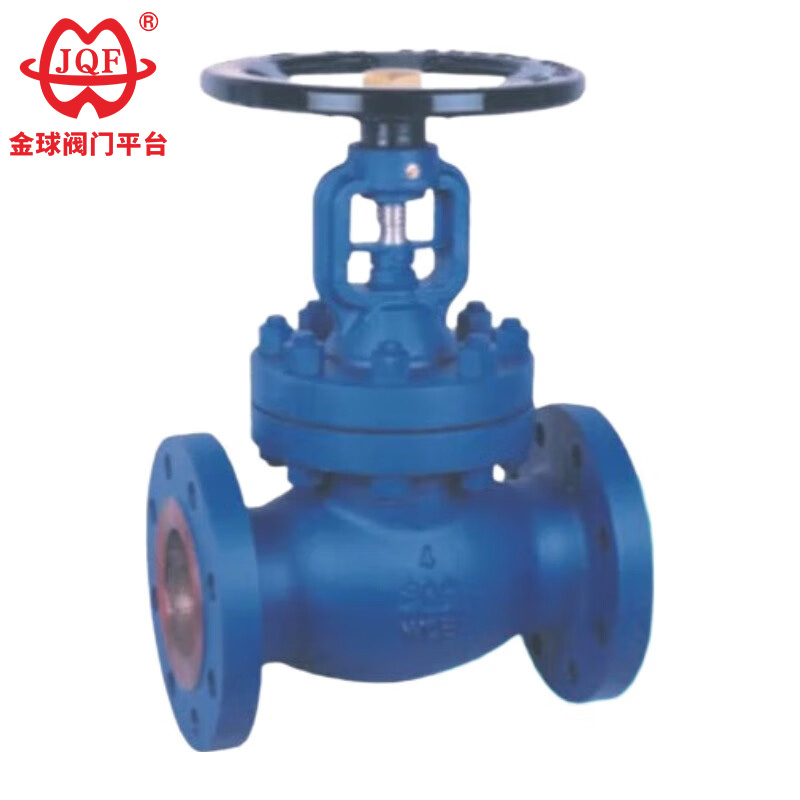

Tampilan produk lan ukuran struktur

diameteripun nominal	Dimensi utama lan dimensi sambungan
diameteripun nominal	L	D	D1	D2	b	Z-d	H	D0
WJ41Y-16C
15	130	95	65	45	14-2	4-Φ14	170	120
20	150	105	75	55	14-2	4-Φ14	190	140
25	160	115	85	65	14-2	4-Φ14	205	160
32	180	135	100	78	16-2	4-Φ18	270	180
40	200	145	110	85	16-3	4-Φ18	310	200
50	230	160	125	100	16-3	4-Φ18	358	240
65	290	180	145	120	18-3	4-Φ18	373	240
80	310	195	160	135	20-3	8-Φ18	435	280
100	350	215	180	155	20-3	8-Φ18	500	300
125	400	245	210	185	22-3	8-Φ18	614	320
150	480	280	240	210	24-3	8-Φ23	674	360
200	600	335	295	265	26-3	12-Φ23	811	400
250	650	405	355	320	30-3	12-Φ25	969	450
300	750	460	410	375	30-3	12-Φ25	1145	580
350	850	520	470	435	34-4	16-Φ25	1280	640
400	980	580	525	485	36-4	16-Φ30	1452	640
WJ41Y-25C
15	130	95	65	45	16-2	4-Φ14	170	120
20	150	105	75	55	16-2	4-Φ14	190	140
25	160	115	85	65	16-2	4-Φ14	205	160
32	180	135	100	78	18-2	4-Φ18	270	180
40	200	145	110	85	18-3	4-Φ18	310	200
50	230	160	125	100	20-3	4-Φ18	358	240
65	290	180	145	120	22-3	8-Φ18	373	240
80	310	195	160	135	22-3	8-Φ18	435	280
100	350	230	190	160	24-3	8-Φ23	500	300
125	400	270	220	188	28-3	8-Φ25	614	320
150	480	300	250	218	30-3	8-Φ25	674	360
200	600	360	310	278	34-3	12-Φ25	811	400
250	650	425	370	332	36-3	12-Φ30	969	450
300	750	485	430	390	40-4	16-Φ30	1145	580
350	850	550	490	448	44-4	16-Φ34	1280	640
400	980	610	550	505	48-4	16-Φ34	1452	640
