Katup Globe Suhu Dhuwur Tekanan Tinggi

Pabrik Katup JQF mrodhuksi katup globe suhu dhuwur J41H lan J41Y sing tahan lama, sing cocog kanggo saluran pipa ing macem-macem sistem kayata petroleum, kimia, konservasi banyu, lan tenaga termal. Tekanan nominal yaiku 150LB nganti 2500LB, lan suhu kerja yaiku 570 ℃. Padha cocok kanggo kahanan kerja sing atos kayata suhu dhuwur, tekanan dhuwur, lan media korosif.

Kirim Pitakonan

Deskripsi Produk

JQF Valve is a leading valve manufacturer in China, who specializing in high performance hydraulic control valves. Our high quality high pressure high temperature globe valves rely on a robust, specialized structure to ensure leak-free operation under extremely high pressures, while also preventing seal deformation or loosening at appropriate temperatures. Due to their high-temperature and high-pressure resistance, as well as ease of disassembly and maintenance, these customized high pressure high temperature globe valves are widely used in power, electrical, electro-mechanical equipment engineering, and electrical control equipment engineering.

1. Rongga sealing self-tightening: Katup globe suhu dhuwur tekanan dhuwur nduweni desain sealing sing dikuatake tekanan, kanthi bevel las standar ing ujung inlet lan stopkontak.
2. Sistem panyegelan paduan keras: Cakram tutup / permukaan sealing kursi digawe saka campuran tungsten-kromium-kobalt berbasis kobalt, kanthi watesan tahan suhu 650 ℃ lan kenaikan 300% ing resistensi nyandhang. Sawise 50.000 siklus mbukak lan nutup, tingkat integritas lumahing sealing ≥98%.
3. Dhuwur-kekuatan tutup tutup stem: Tempered lan panas-dianggep matriks plus perawatan nitriding lumahing.
4. Rongga jero karat-inhibiting kothak stuffing: Corrosion inhibitor ditambahake kanggo entuk nul bocor, ngurangi torsi gesekan kanggo 60% saka struktur standar.

Standar Eksekutif

Standar Desain: ASME B16.34M
Dawane Struktur: SME B16.10
Tes lan Inspeksi: API 598
Tekanan - Suhu: ASME B16.34
Identifikasi produk: ASME B16.34

Parameter kinerja

Tekanan nominal		150LB	300LB	600LB	900LB	1500LB	2500LB
Tekanan kerja		2.0	5.0	10.0	15.0	25.0	45.0
suhu sing tepat (℃)		≤570	≤570	≤570	≤570	≤570	≤570
Media sing cocog		Uap lan suhu dhuwur lan nilai tekanan dhuwur liyane
materi	Badan, kap	Baja kromium molibdenum vanadium
	Disk	Baja kromium molibdenum vanadium + paduan hardfacing
	Kursi	Baja kromium molibdenum vanadium + paduan hardfacing
	Batang katup	Baja kromium molibdenum vanadium

Wangun utama lan ukuran sambungan

DN	L	D	D1	D2	f	b	z-d	H	D0
150 (LB)
DN15	108	90	60.3	35	2	8	4-Φ16	235	125
DN20	117	100	70	43	2	9	4-Φ16	241	125
DN25	127	110	79.4	51	2	9.6	4-Φ16	242	125
DN32	140	115	89	63.5	2	11.2	4-Φ16	280	160
DN40	165	125	98.4	73	2	12.7	4-Φ16	315	160
DN50	203	150	120.7	92	2	14.3	4-Φ19	350	200
DN65	216	180	139.7	105	2	15.9	4-Φ19	370	200
DN80	241	190	152.4	127	2	17.5	4-Φ19	385	250
DN100	292	230	190.5	157.2	2	22.3	8-Φ19	454	250
DN125	356	255	216	185.7	2	22.3	8-Φ22.5	472	355
DN150	406	280	241.5	216	2	23.9	8-Φ22.5	541	355
DN200	495	345	298.5	270	2	27	8-Φ22.5	590	450
DN250	622	405	362	324	2	28.6	12-Φ25.5	780	450
DN300	698	485	438	381	2	30.2	12-Φ25.5	870	500
DN350	787	535	476.3	413	2	33.4	12-Φ28.5	900	600
DN400	914	595	540	470	2	35	16-Φ28.5	1250	600
DN450	-	635	578	533.4	2	38.1	16-Φ32	-	610
300 (LB)
DN15	152	95	66.7	35	2	12.7	4-Φ16	241	125
DN20	178	115	82.6	43	2	14.3	4-Φ19	241	125
DN25	203	125	89	50.8	2	15.9	4-Φ19	283	160
DN32	216	135	98.5	63.5	2	17.5	4-Φ19	320	200
DN40	229	155	114.3	73	2	19.1	4-Φ22.5	322	200
DN50	267	165	127	92.1	2	20.7	8-Φ19	345	200
DN65	292	190	149.2	104.8	2	23.9	8-Φ22.5	377	250
DN80	318	210	168.3	127	2	27	8-Φ22.5	464	280
DN100	356	255	200	157.2	2	30.2	8-Φ22.5	490	355
DN125	400	280	235	185.7	2	33.4	8-Φ22.5	614	400
DN150	444	320	270	216	2	35	12-Φ22.5	700	450
DN200	559	380	330.2	270	2	39.7	12-Φ25.5	777	500
DN250	622	445	387.4	323.8	2	46.1	16-Φ28.5	935	550
DN300	711	520	450.8	381	2	49.3	16-Φ32	997	600
DN350	762	585	514.4	412.8	2	52.4	20-Φ32	1058	650
DN400	864	650	571.5	470	2	55.6	20-Φ35	1320	700
600 (LB)
DN15	165	95	66.7	35	7	14.3	4-Φ16	245	156
DN20	190	115	82.6	43	7	15.9	4-Φ19	245	161
DN25	216	125	89	50.8	7	17.5	4-Φ19	290	187
DN32	229	135	98.4	63.5	7	20.7	4-Φ19	325	214
DN40	241	155	114.3	73	7	22.3	4-Φ22.5	330	252
DN50	292	165	127	92.1	7	25.4	8-Φ19	345	430
DN65	330	190	149.2	104.8	7	28.6	8-Φ22.5	365	480
DN80	356	210	168.3	127	7	31.8	8-Φ22.5	465	530
DN100	432	275	216	157	7	38.1	8-Φ25.5	520	650
DN125	508	330	266.7	185.7	7	44.5	8-Φ28.5	635	750
DN150	559	355	292.1	216	7	47.7	12-Φ28.5	763	850
DN200	660	420	349.2	270	7	55.6	12-Φ32	845	1050
DN250	787	510	431.8	323.8	7	63.5	16-Φ35	930	1257
DN300	838	560	489	381	7	66.7	20-Φ35	1010	1468
DN350	889	605	527	412.8	7	69.9	20-Φ38	1090	1623
DN400	991	685	603.2	470	7	76.2	20-Φ41	1140	1816
900 (LB)
DN50	368	215	165.1	92.1	7	38.1	8-Φ25.5	430	320
DN65	419	245	190.5	104.8	7	41.3	8-Φ28.5	530	320
DN80	381	265	190.5	127	7	38.1	8-Φ28.5	580	360
DN100	457	290	235	157.2	7	44.5	8-Φ32	690	450
DN125	559	350	279.4	185.7	7	50.8	8-Φ35	780	560
DN150	610	380	317.5	216	7	55.6	12-Φ32	890	630
DN200	737	470	393.7	270	7	63.5	12-Φ38	1240	720
DN250	838	545	470	323.8	7	69.9	16-Φ38	1651	760
1500 (LB)
DN65	419	245	190.5	104.8	7	41.6	8-Φ28.5	530	400
DN80	470	265	203.2	127	7	47.7	8-Φ32	590	450
DN100	546	310	241.3	157.2	7	54	8-Φ35	710	500
DN125	673	375	292.1	185.7	7	73.1	8-Φ41	780	560
DN150	705	395	317.5	215.9	7	82.6	12-Φ38	904	630
DN200	832	485	393.7	270	7	92.1	12-Φ45	1140	560
2500 (LB)
DN65	508	265	196.8	104.8	7	57.2	8-Φ32	740	400
DN80	578	305	228.6	127	7	66.7	8-Φ35	780	450
DN100	637	355	273	157.2	7	76.2	8-Φ41	860	560
DN125	794	420	323.8	185.7	7	92.1	8-Φ48	930	630
DN150	914	485	368.3	216	7	108	8-Φ54	1070	560
DN200	1022	550	438.2	270	7	127	12-Φ54	1180	630

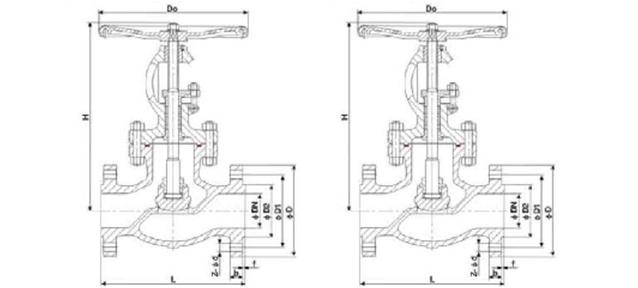

Gambar struktur
