API Bevel Gear Globe Valve

Katup globe bevel API berkualitas tinggi dirancang lan diprodhuksi dening pabrik JQF Valve, produsen profesional ing China, miturut standar API Amerika. Segel conical lan desain kursi sing bisa diganti nambah umur layanan, njamin kualitas lan daya tahan sing unggul.

Kirim Pitakonan

Deskripsi Produk

JQF Valve factory has been established for over 20 years, with business scope covering product design and R&D, mold manufacturing, casting and forging production, machining, performance testing and experimentation, marketing and service. Our durable API bevel gear globe valve is mainly used in pipeline systems to cut off, distribute, and change the direction of media flow. It features low fluid resistance, simple structure, and reliable sealing. Operated via a bevel gear transmission mechanism, it is easy to operate even when a large closing force is required, while the conical sealing surface provides erosion resistance.

1. Struktur Prasaja
Katup globe gear API Bevel nduweni desain sing prasaja, nggawe trep lan efisien kanggo nggawe lan njaga.
2. Tanggap Cepet
Katup globe gear API Bevel duwe stroke kerja sing cendhak, nyebabake mbukak lan nutup kanthi cepet.
3. Sealing awet
Katup globe gear API Bevel nawakake kinerja sealing sing dhuwur, resistensi gesekan minimal, lan umur layanan sing dawa.

Standar implementasine

Desain Standar BS1873 JIS B2071-2081
Dawane struktur ANSI B16.10, JISB2002
Flange pipa ANSI B16.5, JIS B2212-2214
Ukuran mburi bokong ANSI B16.25
Inspeksi lan Pengujian API598, JIS B2003
Transmisi manual, listrik, gear bevel

Paramèter kinerja

model		J41H-150LB～2500LB	J41Y-150LB～2500LB	J41W-150LB～2500LB
Tekanan kerja (kelas)		150LB～2500LB
suhu sing tepat (℃)		≤425		≤150
Media sing cocog		Banyu, uap, lenga		Medium korosif sing lemah
materi	Badan, kap	Baja karbon		Baja tahan karat nikel-titanium krom
	Batang katup	Baja tahan karat krom		Baja tahan karat nikel-titanium krom
	Sealing lumahing	Wesi basis wesi lumahing	Paduan hardfacing	Bahan awak
	pangisi	Asbestos grafit, fleksibel grafit, PTFE

Wangun utama lan dimensi sambungan

DN	L	D	D1	D2	b	Z-d	H	D0
150Lb
15	108	90	60.5	35	10	4-15	241	125
20	117	100	70	43	11	4-15	241	125
25	127	110	79.5	51	12	4-15	242	125
32	140	120	89	63	13	4-15	280	160
40	165	130	98.5	73	15	4-15	286	160
50	203	150	120.5	92	16	4-19	368	200
65	216	180	139.5	105	18	4-19	387	200
80	241	190	152.5	127	19	4-19	411	250
100	292	230	190.5	157	24	8-19	454	250
125	356	255	216	186	24	8-22	455	355
150	406	280	241.5	216	26	8-22	541	355
200	495	345	298.5	270	29	8-22	651	450
250	622	405	362	324	31	12-25	800	450
300	698	485	432	381	32	12-25	1231	500
350	787	535	476.5	413	35	12-29	1450	600
400	914	595	534.5	470	37	16-29	1645	600
450	-	635	577.5	533	40	16-32	-	610
300Lb
15	152	95	66.5	35	15	4-15	241	125
20	178	120	82.5	43	16	4-19	241	125
25	203	125	89	51	18	4-19	283	160
32	216	135	98.5	63	19	4-19	320	200
40	229	155	114.3	73	21	4-22	322	200
50	267	165	127	92	23	8-19	399	200
65	292	190	149	105	26	8-22	438	250
80	318	210	168.5	127	29	8-22	464	280
100	356	255	200	157	32	8-22	565	355
125	400	280	235	186	35	8-22	614	400
150	444	320	270	216	37	12-22	717	450
200	559	380	330	270	42	12-25	930	500
250	622	445	387.5	324	47.7	16-29	1012	450
300	711	520	451	381	50.8	16-32	1231	500
350	762	585	514.5	413	54	20-32	1450	600
400	864	650	571.5	470	57.2	20-35	1645	600
600Lb
15	165	95	66.5	35	22	4-15	100	156
20	190	120	82.5	43	23	4-19	100	161
25	216	125	89	51	25	4-19	125	187
32	229	135	98.5	63	28	4-19	160	214
40	241	155	114.3	73	30	4-22	160	252
50	292	165	127	92	33	8-22	180	430
65	330	190	149	100	36	8-22	250	480
80	356	210	168	127	39	8-22	250	530
100	432	275	216	157	45	8-25	350	650
125	508	330	266.5	186	52	8-29	350	750
150	559	355	292	216	55	12-29	450	850
200	660	420	349	270	63	12-32	500	1050
250	787	510	432	324	71	19-35	600	1257
300	838	560	489	381	74	20-35	680	1468
350	889	605	527	413	77	20-38	760	1623
400	991	685	603	470	84	20-41	760	1816

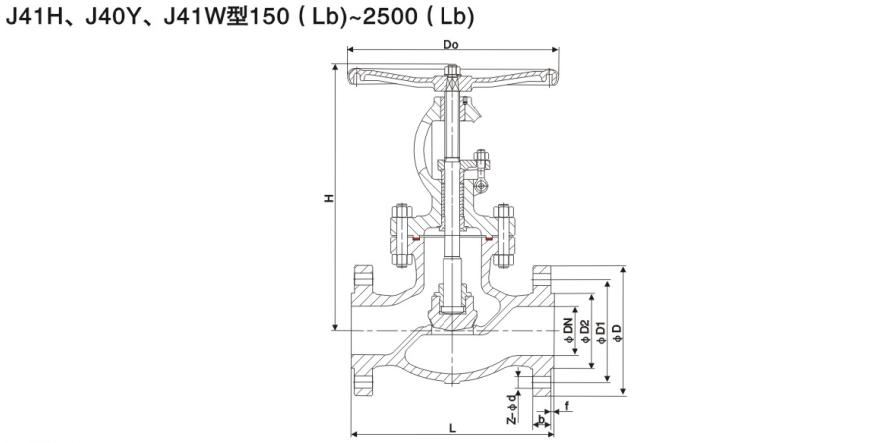

Gambar struktur
