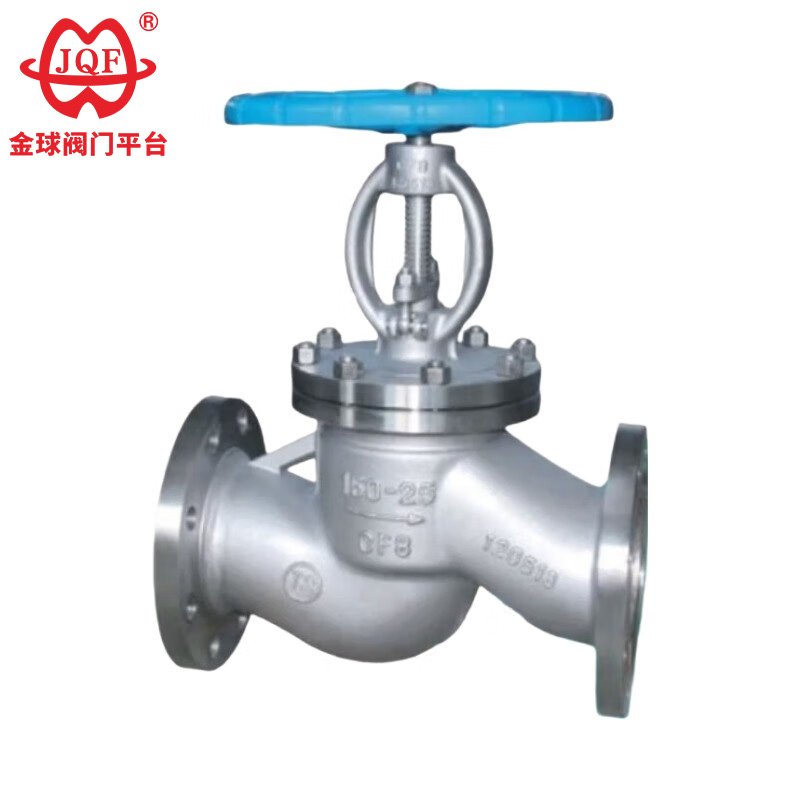

JQF Valve minangka pabrik manufaktur katup proses lengkap sing nggabungake riset ilmiah, desain, produksi, penjualan, lan layanan sawise-sales. Katup globe flanged stainless steel berkualitas tinggi minangka katup safety sing dirancang khusus kanggo kontrol saluran pipa media kayata amonia lan gas alam. Fitur kinerja sealing stabil, resistance karat kuwat, lan operasi gampang. Digawe saka bahan tahan karat kayata stainless steel, iku cocok kanggo industri kimia, mecahaken masalah saka resistance karat miskin lan gampang bocor katup biasa. Uga bisa digunakake kanggo ngatur aliran. Kita ngatur manajemen produksi lan operasi miturut standar sistem kualitas GB / T19001-2000-ISO9001: 2000, dipandu dening prinsip "memproduksi produk berkualitas tinggi." Kita terus-terusan ngenalake jalur produksi lan peralatan internasional sing maju, lan terus ngembangake produk anyar kanggo nyukupi kabutuhan pelanggan. Nggoleki masa depan, ayo menehi layanan lengkap liwat internet lan komunikasi interaktif.
1. Pilihan materi sing ketat njamin kualitas.
2. Katup globe flanged stainless steel tahan nyandhang, tahan korosi, tahan tekanan dhuwur, lan tahan suhu dhuwur, kanthi umur layanan sing dawa.
3. Iku fleksibel kanggo nginstal, gampang disassemble, lan fitur rotasi handwheel trep.
4. Katup globe flanged stainless steel punika anti banyu lan dustproof, karo struktur cukup, desain sampurna, lan kinerja sealing banget.
5. Katup globe flanged stainless steel utamané digunakake kanggo ngontrol amonia, gas bahan bakar, lan media gas kayata nitrogen lan hidrogen.
Spesifikasi desain: GB / T 12235
Dawane struktur: GB / T 12221
Sambungan flange: JB / T 79
Tes lan pamriksa: JB / T 9002
Identifikasi Produk: GB / T 12220
Spesifikasi pangiriman: JB / T 7928
| model | J41H-16C～160C | J41Y-16C～160C | J41W-16P～160P | |
| Tekanan kerja (MPa) | 1.6-16.0 | |||
| suhu sing tepat (℃) | ≤425 | ≤150 | ||
| Media sing cocog | Banyu, uap, lenga | Medium korosif sing lemah | ||
| materi | Badan, kap | Baja karbon | Baja tahan karat nikel-titanium krom | |
| Batang katup | Baja tahan karat krom | Baja tahan karat nikel-titanium krom | ||
| Sealing lumahing | Wesi basis wesi lumahing | Paduan hardfacing | Bahan awak | |
| pangisi | Asbestos grafit, fleksibel grafit, PTFE | |||
| diameteripun nominal | Dimensi utama lan dimensi sambungan | |||||||
| L | D | D1 | D2 | b | Z-d | H | D0 | |
| J41H-16C | ||||||||
| 15 | 130 | 95 | 65 | 45 | 14-2 | 4-Φ14 | 170 | 120 |
| 20 | 150 | 105 | 75 | 55 | 14-2 | 4-Φ14 | 190 | 140 |
| 25 | 160 | 115 | 85 | 65 | 14-2 | 4-Φ14 | 205 | 160 |
| 32 | 180 | 135 | 100 | 78 | 16-2 | 4-Φ18 | 270 | 180 |
| 40 | 200 | 145 | 110 | 85 | 16-3 | 4-Φ18 | 310 | 200 |
| 50 | 230 | 160 | 125 | 100 | 16-3 | 4-Φ18 | 358 | 240 |
| 65 | 290 | 180 | 145 | 120 | 18-3 | 4-Φ18 | 373 | 240 |
| 80 | 310 | 195 | 160 | 135 | 20-3 | 8-Φ18 | 435 | 280 |
| 100 | 350 | 215 | 180 | 155 | 20-3 | 8-Φ18 | 500 | 300 |
| 125 | 400 | 245 | 210 | 185 | 22-3 | 8-Φ18 | 614 | 320 |
| 150 | 480 | 280 | 240 | 210 | 24-3 | 8-Φ23 | 674 | 360 |
| 200 | 600 | 335 | 295 | 265 | 26-3 | 12-Φ23 | 811 | 400 |
| 250 | 650 | 405 | 355 | 320 | 30-3 | 12-Φ25 | 969 | 450 |
| 300 | 750 | 460 | 410 | 375 | 30-3 | 12-Φ25 | 1145 | 580 |
| 350 | 850 | 520 | 470 | 435 | 34-4 | 16-Φ25 | 1280 | 640 |
| 400 | 980 | 580 | 525 | 485 | 36-4 | 16-Φ30 | 1452 | 640 |
| J41H-25C | ||||||||
| 15 | 130 | 95 | 65 | 45 | 16-2 | 4-Φ14 | 170 | 120 |
| 20 | 150 | 105 | 75 | 55 | 16-2 | 4-Φ14 | 190 | 140 |
| 25 | 160 | 115 | 85 | 65 | 16-2 | 4-Φ14 | 205 | 160 |
| 32 | 180 | 135 | 100 | 78 | 18-2 | 4-Φ18 | 270 | 180 |
| 40 | 200 | 145 | 110 | 85 | 18-3 | 4-Φ18 | 310 | 200 |
| 50 | 230 | 160 | 125 | 100 | 20-3 | 4-Φ18 | 358 | 240 |
| 65 | 290 | 180 | 145 | 120 | 22-3 | 8-Φ18 | 373 | 240 |
| 80 | 310 | 195 | 160 | 135 | 22-3 | 8-Φ18 | 435 | 280 |
| 100 | 350 | 230 | 190 | 160 | 24-3 | 8-Φ23 | 500 | 300 |
| 125 | 400 | 270 | 220 | 188 | 28-3 | 8-Φ25 | 614 | 320 |
| 150 | 480 | 300 | 250 | 218 | 30-3 | 8-Φ25 | 674 | 360 |
| 200 | 600 | 360 | 310 | 278 | 34-3 | 12-Φ25 | 811 | 400 |
| 250 | 650 | 425 | 370 | 332 | 36-3 | 12-Φ30 | 969 | 450 |
| 300 | 750 | 485 | 430 | 390 | 40-4 | 16-Φ30 | 1145 | 580 |
| 350 | 850 | 550 | 490 | 448 | 44-4 | 16-Φ34 | 1280 | 640 |
| 400 | 980 | 610 | 550 | 505 | 48-4 | 16-Φ34 | 1452 | 640 |
