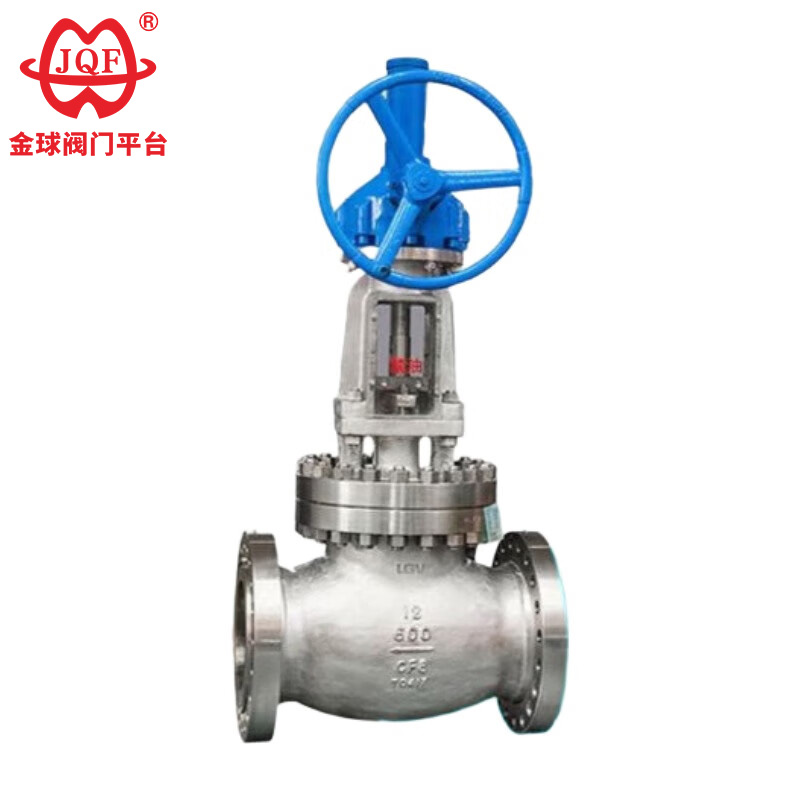

Katup Globe Khusus Oksigen

Pabrik Katup JQF ngasilake katup globe khusus oksigen jinis JY41W lan JY41Y sing digawe saka kuningan silikon utawa stainless steel berkualitas tinggi, menehi kaluwihan kayata kekuatan mekanik sing dhuwur, tahan nyandhang, lan safety sing apik. Langkah-langkah anti-lenga sing ketat digabung sajrone manufaktur, lan kabeh bagean ngalami perawatan degreacing sing ketat sadurunge dipasang. Kabeh ukuran kalebu flanges Utas konduktif kanggo nyegah listrik statis, lan bagean tutup dilindhungi saka kontaminasi dening bledug lan lenga. Prodhuk iki kasedhiya ing rong bahan: siji karo awak kuningan silikon cor, tutup, lan disk, lan liyane karo stainless steel kualitas dhuwur kanggo awak, tutup, lan disk.

Kirim Pitakonan

Deskripsi Produk

JQF Valve factory's durable oxygen special globe valves are cast from high-quality silicon brass or stainless steel, featuring high mechanical strength, excellent wear resistance, and superior safety. Utilizing an oxygen tubing system, they offer optimal explosion-proof and flame-retardant performance, eliminating potential safety hazards related to oxygen and road conditions. Our efficient quality management system, from raw material production to finished product processing, and our continuous development of new products and technologies are our two long-term competitive advantages. We provide strong support for oxygen special globe valves that meet customer and market demands, and our responsible and reliable after-sales service, along with our ability to meet customized product requirements, are the guarantees of our sustainable development.

1. Fire-retardant lan flame-retardant: Komponen inti saka Oksigen Special Globe Valve digawe kabeh saka tembaga, kang non-combustible lan spark-free, njupuk safety malah ing acara aliran udara kacepetan dhuwur nggawa partikel.
2. Multiple fitur safety: Desain disegel punika dustproof, anti banyu, lan lenga-bukti. Kabeh bagean sing kontak oksigen wis di resiki sak tenane sadurunge dipasang, supaya ora ana sisa pelumas. Bahan pangisi khusus digunakake kanggo njamin panggunaan sing aman lan dipercaya.

Paramèter kinerja

Diameter nominal (DN)		15-400
Tekanan nominal (MPa)		1.6	2.5	4
tekanan test	kekuwatan	2.4	3.75	6
(MPa)	segel	1.76	2.75	4.4
suhu sing tepat		≤200 ℃
Media sing cocog		oksigen
awak		Kuningan silikon, baja tahan karat
Batang katup		baja tahan karat
Spool		Tembaga, stainless steel
pangisi		Teflon

Wangun utama lan dimensi sambungan

diameteripun nominal	Dimensi utama lan dimensi sambungan
diameteripun nominal	L	D	D1	D2	b	Z-d	H	D0
JY41W-16P
15	130	95	65	45	14-2	4-Φ14	170	120
20	150	105	75	55	14-2	4-Φ14	190	140
25	160	115	85	65	14-2	4-Φ14	205	160
32	180	135	100	78	16-2	4-Φ18	270	180
40	200	145	110	85	16-3	4-Φ18	310	200
50	230	160	125	100	16-3	4-Φ18	358	240
65	290	180	145	120	18-3	4-Φ18	373	240
80	310	195	160	135	20-3	8-Φ18	435	280
100	350	215	180	155	20-3	8-Φ18	500	300
125	400	245	210	185	22-3	8-Φ18	614	320
150	480	280	240	210	24-3	8-Φ23	674	360
200	600	335	295	265	26-3	12-Φ23	811	400
250	650	405	355	320	30-3	12-Φ25	969	450
300	750	460	410	375	30-3	12-Φ25	1145	580
350	850	520	470	435	34-4	16-Φ25	1280	640
400	980	580	525	485	36-4	16-Φ30	1452	640
JY41W-25P
15	130	95	65	45	16-2	4-Φ14	170	120
20	150	105	75	55	16-2	4-Φ14	190	140
25	160	115	85	65	16-2	4-Φ14	205	160
32	180	135	100	78	18-2	4-Φ18	270	180
40	200	145	110	85	18-3	4-Φ18	310	200
50	230	160	125	100	20-3	4-Φ18	358	240
65	290	180	145	120	22-3	8-Φ18	373	240
80	310	195	160	135	22-3	8-Φ18	435	280
100	350	230	190	160	24-3	8-Φ23	500	300
125	400	270	220	188	28-3	8-Φ25	614	320
150	480	300	250	218	30-3	8-Φ25	674	360
200	600	360	310	278	34-3	12-Φ25	811	400
250	650	425	370	332	36-3	12-Φ30	969	450
300	750	485	430	390	40-4	16-Φ30	1145	580
350	850	550	490	448	44-4	16-Φ34	1280	640
400	980	610	550	505	48-4	16-Φ34	1452	640

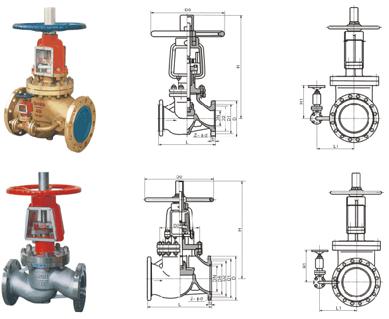

Gambar struktur
