Katup Globe Ammonia

Minangka produsen klep profesional, katup Ammonia Globe JQF Valve nduweni kinerja sealing sing stabil, operasi sing dipercaya, tahan korosi sing kuat, sawetara titik bocor internal lan eksternal, lan operasi sing gampang. Kasil ngatasi masalah resistensi korosi sing kurang, perforasi gampang, sealing sing ora apik, lan bocor gampang ditemokake ing katup biasa ing pipa kimia. Cocog kanggo pipa transmisi gas amonia ing industri kimia, nyukupi syarat kanggo panggunaan sing bisa dipercaya kanggo jangka panjang, kalebu kinerja sealing, maintainability, lan safety. Yen sampeyan kasengsem ing produk kita, please aran gratis kanggo hubungi kita!

Kirim Pitakonan

Deskripsi Produk

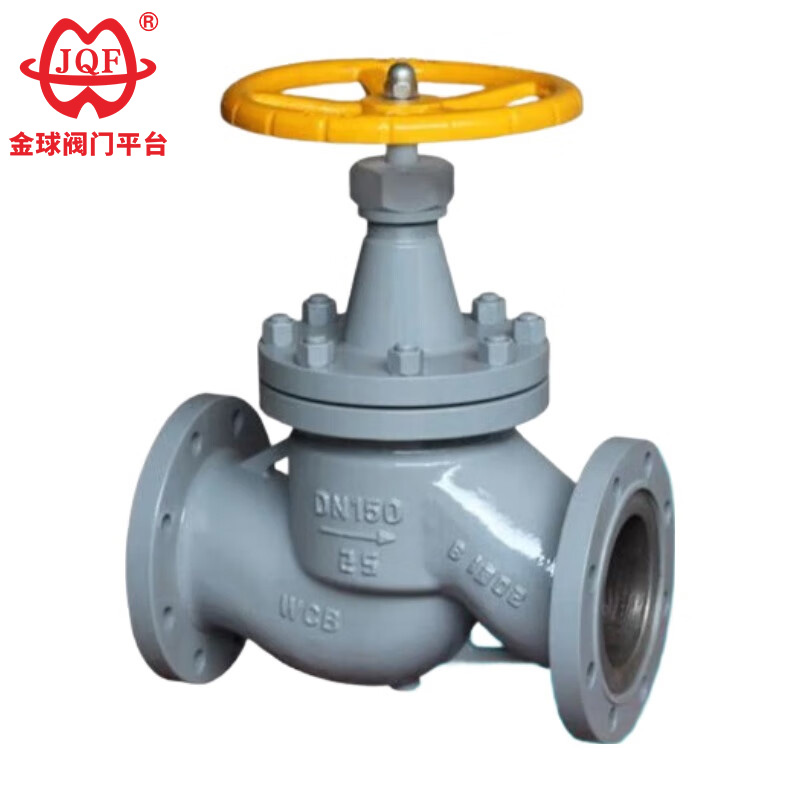

JQF Valve manufactures the ammonia globe valve in stock, a type of valve used to control the on/off switching and flow rate of ammonia media. Typically made of cast steel, it features stable sealing performance and a long service life, meeting the needs of various operating conditions. Its operation involves turning a hand-wheel, which moves the valve stem up and down, thus controlling the opening and closing of the valve to regulate flow. The J41B PN40 ammonia globe valve is a manual, flanged, straight-through type valve with a nylon plastic seat sealing surface, a nominal pressure of PN40, and a carbon steel gate valve body. Applicable media include liquids, gases, ammonia, nitrogen, and hydrogen.

1. Square Flange Design: Ing flange tengah adopts metu-ngembangaké struktur kothak, lan rod operasi mimpin liwat mekanisme sambungan ndhelikke.

2. Precise Arc-Surface Sealing: Lumahing sealing saka awak tutup globe Ammonia dirancang karo lumahing convex busur-shaped, mesthekake pas nyenyet lan segel karo disc tutup.
3. Long-Lasting Wear-Resistant Alloy: Lumahing sealing saka tutup globe Ammonia digawe saka bahan paduan tahan karat, njamin kinerja sealing banget lan umur layanan dawa.

Bahan Bagian Produk

jinis produk	Jeneng Part
jinis produk	Badan, kap	Batang katup	pangisi	Sealing lumahing	Gasket	pengikat
J41B-(16/25)C	Cast baja	Baja karbon	Teflon	Babbitt	Lembaran plastik asbes	Baja karbon berkualitas tinggi
J41B-(16/25)O	wesi ulet	Baja karbon	Teflon	Babbitt	Lembaran plastik asbes	Baja karbon berkualitas tinggi
J41B-(16/25)K	Baja sing bisa ditekuk	Baja karbon	Teflon	Babbitt	Lembaran plastik asbes	Baja karbon berkualitas tinggi

Wangun produk lan ukuran struktur

diameteripun nominal	Dimensi utama lan dimensi sambungan
diameteripun nominal	L	D	D1	D2	b	Z-d	H	D0
J41B-16C
15	130	95	65	45	14-2	4-Φ14	170	120
20	150	105	75	55	14-2	4-Φ14	190	140
25	160	115	85	65	14-2	4-Φ14	205	160
32	180	135	100	78	16-2	4-Φ18	270	180
40	200	145	110	85	16-3	4-Φ18	310	200
50	230	160	125	100	16-3	4-Φ18	358	240
65	290	180	145	120	18-3	4-Φ18	373	240
80	310	195	160	135	20-3	8-Φ18	435	280
100	350	215	180	155	20-3	8-Φ18	500	300
125	400	245	210	185	22-3	8-Φ18	614	320
150	480	280	240	210	24-3	8-Φ23	674	360
200	600	335	295	265	26-3	12-Φ23	811	400
250	650	405	355	320	30-3	12-Φ25	969	450
300	750	460	410	375	30-3	12-Φ25	1145	580
350	850	520	470	435	34-4	16-Φ25	1280	640
400	980	580	525	485	36-4	16-Φ30	1452	640
J41B-25C
15	130	95	65	45	16-2	4-Φ14	170	120
20	150	105	75	55	16-2	4-Φ14	190	140
25	160	115	85	65	16-2	4-Φ14	205	160
32	180	135	100	78	18-2	4-Φ18	270	180
40	200	145	110	85	18-3	4-Φ18	310	200
50	230	160	125	100	20-3	4-Φ18	358	240
65	290	180	145	120	22-3	8-Φ18	373	240
80	310	195	160	135	22-3	8-Φ18	435	280
100	350	230	190	160	24-3	8-Φ23	500	300
125	400	270	220	188	28-3	8-Φ25	614	320
150	480	300	250	218	30-3	8-Φ25	674	360
200	600	360	310	278	34-3	12-Φ25	811	400
250	650	425	370	332	36-3	12-Φ30	969	450
300	750	485	430	390	40-4	16-Φ30	1145	580
350	850	550	490	448	44-4	16-Φ34	1280	640
400	980	610	550	505	48-4	16-Φ34	1452	640
