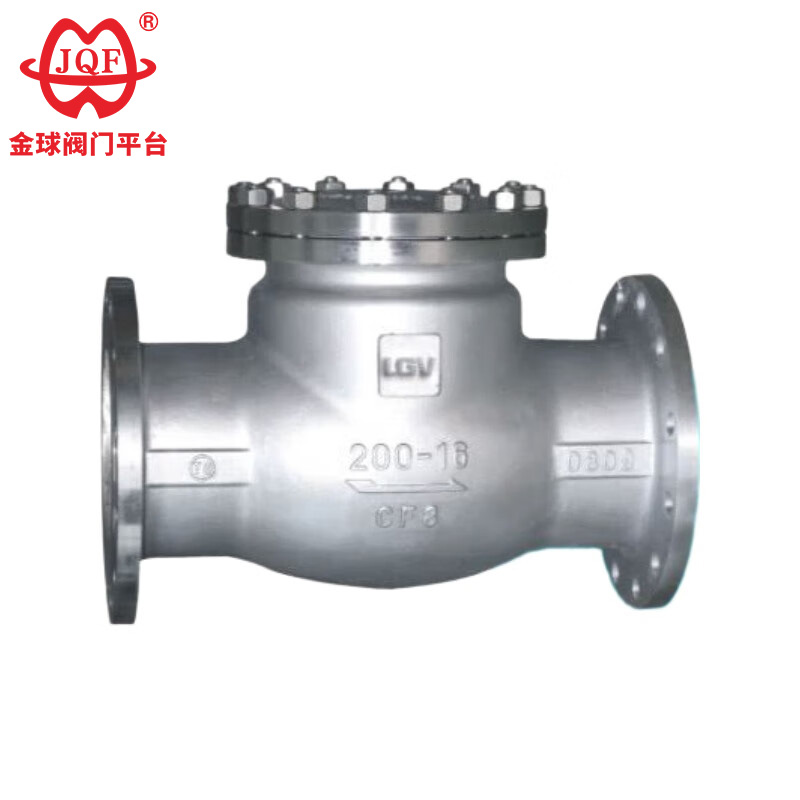

Jinqiu Valve, produsen katup cek stainless steel profesional ing China, sing nggawe katup cek stainless steel sing lengen rocker nggunakake struktur sambungan bunder ing persimpangan lengen rocker lan cakram katup. Iki ngidini disk katup duwe tingkat kebebasan tartamtu ing kisaran 360 derajat lan menehi ganti rugi posisi mikro sing cocog.
Katup iki akeh digunakake ing industri kimia, metalurgi, lan farmasi. Klep mriksa stainless steel jinis H44W lan H44Y digunakake ing sistem pipa, utamane kanggo nyegah arus balik medium, nyegah pompa lan motor penggerak saka mbalikke, lan nyegah kebocoran medium ing wadhah. Katup mriksa uga bisa digunakake ing pipa ing ngendi tekanan bisa luwih dhuwur tinimbang sistem utama utawa tambahan.
1. Low pressure drop: Desain full-bore saka tutup mriksa stainless steel njamin resistance minimal kanggo mili nalika mbukak, nyimpen energi ing sistem.
2. Operasi kanthi otomatis: Katup mriksa stainless steel ora mbutuhake sumber daya eksternal utawa intervensi manual; makaryakke mung adhedhasar aliran line lan meksa.
3. Reliable sealing: Nawakake logam-kanggo-logam utawa tahan (alus) jog kanggo nyegah backflow.
4. Desain sing kuat lan prasaja: Katup mriksa stainless steel nduweni sawetara bagean sing obah, linuwih dhuwur, lan mbutuhake pangopènan minimal.
| model | H44W-16P~250 | |
| Tekanan kerja (MPa) | 1.6~25 | |
| suhu sing tepat (℃) | ≤550 | |
| Media sing cocog | Medium korosif sing lemah | |
| materi | Body, bonet, disk | Baja tahan karat nikel-titanium krom |
| Sealing lumahing | Badan disegel | |
| Jeneng Part | Jeneng materi | |||
| awak | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| kap | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| Plate katup | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| Sealing lumahing | Badan / STL | Badan / STL | Badan / STL | Badan / STL |
| Poros katup | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
| Gasket | Grafit fleksibel | Grafit fleksibel | Grafit fleksibel | Grafit fleksibel |
| bolt | A193 B8 | A193 B8M | A193 B8 | A193 B8M |
| Nut | A194 8 | A194 8M | A194 8 | A194 8M |
| Suhu operasi | -46~425 ℃ | -46~425 ℃ | -46~425 ℃ | -46~425 ℃ |
| Media sing cocog | Lemah korosif | Lemah korosif | Lemah korosif | Lemah korosif |
| diameteripun nominalDN | Dimensi utama lan dimensi sambungan | ||||||
| L | D | D1 | D2 | b | Z-d | H | |
| H44W-16P H44W-16R | |||||||
| 25 | 160 | 115 | 85 | 65 | 16 | 4-14 | 100 |
| 32 | 180 | 135 | 100 | 78 | 16 | 4-18 | 105 |
| 40 | 200 | 145 | 100 | 85 | 16 | 4-18 | 115 |
| 50 | 230 | 160 | 125 | 100 | 16 | 4-18 | 135 |
| 65 | 290 | 180 | 145 | 120 | 18 | 4-18 | 142 |
| 80 | 310 | 195 | 160 | 135 | 20 | 8-18 | 165 |
| 100 | 350 | 215 | 180 | 155 | 20 | 8-18 | 180 |
| 125 | 400 | 245 | 210 | 185 | 22 | 8-18 | 210 |
| 150 | 480 | 280 | 240 | 210 | 24 | 8-23 | 233 |
| 200 | 500 | 335 | 295 | 265 | 26 | 12-23 | 304 |
| 250 | 550 | 405 | 355 | 320 | 30 | 12-25 | 348 |
| 300 | 650 | 460 | 410 | 375 | 30 | 12-25 | 390 |
| 350 | 750 | 520 | 470 | 435 | 34 | 16-25 | 430 |
| 400 | 850 | 580 | 525 | 485 | 36 | 16-30 | 468 |
| H44W-25P H44W-25R | |||||||
| 25 | 160 | 115 | 85 | 65 | 16 | 4-14 | 100 |
| 32 | 180 | 135 | 100 | 78 | 16 | 4-18 | 105 |
| 40 | 200 | 145 | 110 | 85 | 16 | 4-18 | 115 |
| 50 | 230 | 160 | 125 | 100 | 20 | 4-18 | 160 |
| 65 | 290 | 180 | 145 | 120 | 22 | 8-18 | 175 |
| 80 | 310 | 195 | 160 | 135 | 22 | 8-18 | 185 |
| 100 | 350 | 230 | 190 | 160 | 24 | 8-23 | 220 |
| 125 | 400 | 270 | 220 | 188 | 28 | 8-25 | 248 |
| 150 | 480 | 300 | 250 | 218 | 30 | 8-25 | 276 |
| 200 | 550 | 360 | 310 | 278 | 34 | 12-25 | 350 |
| 250 | 650 | 425 | 370 | 332 | 36 | 12-30 | 410 |
| 300 | 750 | 485 | 430 | 390 | 40 | 16-30 | 430 |
| 350 | 850 | 550 | 490 | 448 | 44 | 16-34 | 518 |
| 400 | 950 | 610 | 550 | 505 | 48 | 16-34 | 560 |
