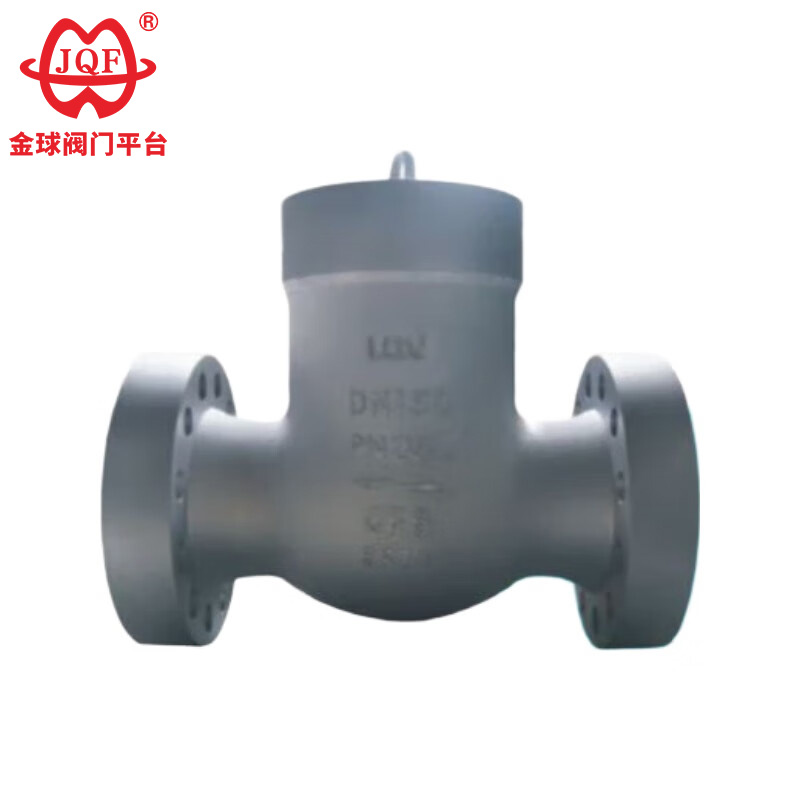

Extractor Pneumatic Check Valve

Katup Jinqiu utamane nggawe lan adol katup bal, katup kupu, katup gerbang, katup mriksa, flensa, lan produk liyane. Katup mriksa pneumatik extractor sing berkualitas tinggi lan disesuaikan diprodhuksi miturut standar GB, ANSI, JIS, lan DIN, lan kaluwihan utamane yaiku panyegelan sing dipercaya lan penindasan palu banyu sing efektif. Produk kita nawakake keuntungan rega sing apik, nyakup sebagian besar wilayah China, uga Eropa, Asia Tenggara, lan pasar Timur Tengah. We look nerusake kanggo dadi partner long-term ing China.

Kirim Pitakonan

Deskripsi Produk

This high quality extractor pneumatic check valve from Jinqiu Valve factory features a wear-resistant hard alloy overlay, ensuring stable and reliable sealing. Simultaneously, a counterweight and cylinder structure provide balancing force during forward flow, aiding in valve opening and smooth operation, while enabling rapid closure during reverse flow, effectively preventing water hammer.

1. Multiple sambungan pungkasan, VCR / komprèsi fitting / wadon / cara sambungan lanang opsional.
2. Desain kabeh-gandheng, ora Utas internal.
3. ring sealing FKM njamin kamungkinan ngoper nutup.
4. Aliran maju bisa diasilake nalika tekanan hulu kurang saka 0,14 bar (2 PSIG).
5. Bisa ditutup nalika meksa mburi kurang saka 0,4 bar (2 PSIG).
6. Standar rata-rata roughness lumahing internal Ra20 uin. (0.5um), electropolishing kanggo roughness Ra10 uin. (0.25um) iku opsional.

Cathetan

Katup mriksa pneumatik extractor dirancang mung kanggo ngontrol arah aliran lan aja digunakake minangka piranti rilis safety.
Nalika katup mriksa pneumatik extractor durung dibukak kanggo sawetara wektu, tekanan pambuka awal bisa luwih dhuwur tinimbang tekanan bukaan sing disetel.
H64Y jinis 1500 (Lb) ~ 2500 (Lb) suhu dhuwur bokong welding katup mriksa kanggo Class1500 ~ 2500Lb, suhu operasi -29 ~ 570 ℃ petroleum, kimia, stasiun daya termal lan kahanan liyane saka pipa.

H64Y-1500Lb wangun utama lan dimensi sambungan

Diameter nominal PNS (ing)	Dimensi lan dimensi sambungan			bobot
Diameter nominal PNS (ing)	d	L	H	bobot
2	50	330	240	40
3	60	368	305	60
4	80	457	315	95
5	96	533	409	170
6	118	610	465	186
8	147	762	528	415
10	180	914	613	658
12	222	1041	680	1200
14	254	1118	745	1638

H64Y-2500Lb wangun utama lan dimensi sambungan

Diameter nominalPNS (ing)	Dimensi lan dimensi sambungan			bobot
Diameter nominalPNS (ing)	d	L	H	bobot
3	54	368	297	44
4	70	457	385	110
5	86	533	410	130
6	104	610	455	192
8	130	762	557	466
10	162	914	615	730
12	210	1041	715	1120
14	234	1118	790	1495
16	264	1245	815	1950
18	304	1397	815	2400

Gambar struktur
