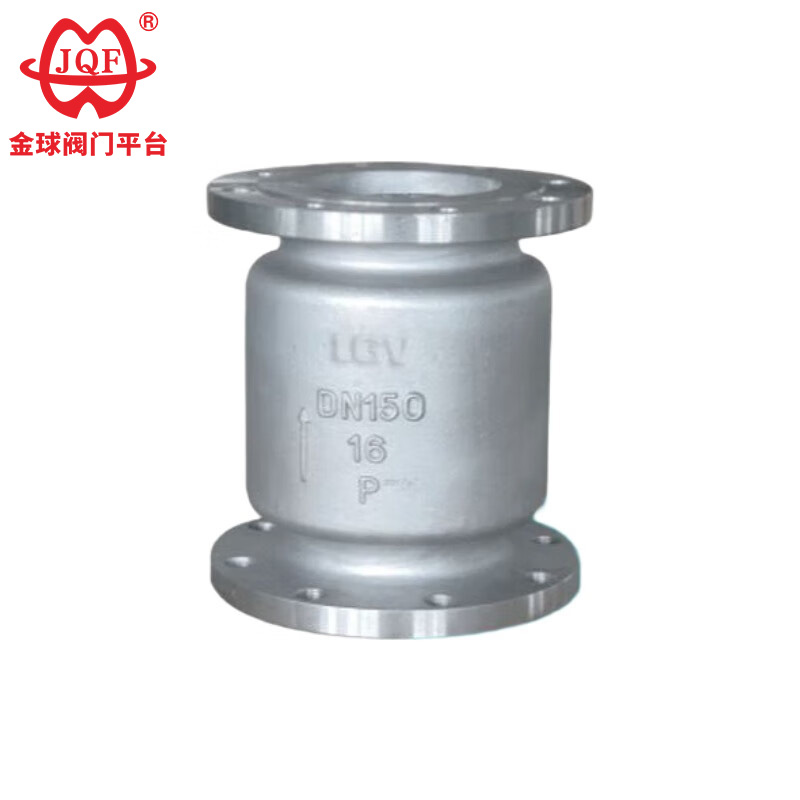

Power Station Priksa Valve

Katup pemeriksa stasiun daya tahan lama Jinqiu Valve cocok kanggo pasokan banyu, got, proteksi geni, lan sistem HVAC. Padha bisa diinstal ing stopkontak pump kanggo nyegah backflow lan karusakan palu banyu. Kita netepi prinsip "customer first," ngupayakake mbangun citra perusahaan sing positif, lan ningkatake kohesi perusahaan. Kita duwe tujuan kanggo nggawe aliansi karo kabeh sektor masyarakat, entuk saling percaya, lan ngupaya hubungan kerjasama jangka panjang kanggo pembangunan bebarengan lan masa depan sing apik.

Kirim Pitakonan

Deskripsi Produk

High quality power station check valves are offered by China manufacturer Jinqiu Valve. Our these valves can be used in preventing fluid backflow. The valve disc opens under fluid pressure, allowing fluid to flow from the inlet to the outlet. When the pressure at the inlet is lower than at the outlet, the valve disc automatically closes under the influence of fluid pressure differential, its own weight, and other factors to prevent fluid backflow.

Bagéyan Utama lan Bahan

Jeneng Part	materi
awak	Besi tuang, besi ulet, baja karbon
Panuntun alur	Besi tuang, besi ulet, baja karbon
Kursi	Perunggu, baja tahan karat krom
Disk	Perunggu, baja tahan karat krom
sumbu	Perunggu, baja tahan karat krom
musim semi	baja tahan karat

Fitur

HC42X, HC42T, HC42H jinis PN10 ~ PN25 muffler mriksa tutup saluran aliran internal desain streamlined, mundhut meksa minimal, bukaan tutup lan nutup stroke cendhak banget, mungkasi pump bisa cepet mati kanggo nyegah swara Pethel banyu ageng, tatanan saka efek bisu.
1. Good Corrosion Resistance: Digawe saka stainless steel tahan karat, katup mriksa stasiun daya njaga kinerja malah ing kahanan reresik atos.
2. Kapabilitas Sealing Dhuwur: Kanthi desain sealing tliti dhuwur, katup entuk bocor nol, njamin integritas sistem.
3. Instalasi lan Maintenance Gampang: Kanthi macem-macem opsi port, katup mriksa stasiun daya ngidini kanggo Déwan cepet / disassembly lan nyuda karya pangopènan.

Wangun utama lan dimensi sambungan

model	diameteripun nominal	D1		D2		D3			N-ΦD		L
model	diameteripun nominal	1.0MPa	1,6 MPa	1.0MPa	1,6 MPa	1.0MPa		1,6 MPa	1.0MPa	1.6MPa	L
H42H	DN300	370		400	410	460			12-13	12-28	181
H42H	DN350	429		460	470	520			16-23	16-28	184
H42H	DN400	480		515	525	580			16-28	16-31	191
H42H	DN450	530		565	585	640			20-28	20-31	203
H42H	DN500	582		620	650	715			20-28	20-34	219
H42H	DN600	682		725	770	810	840		20-31	20-37	222
H42H	DN700	794		840	840	895	910		24-31	24-37	280
H42H	DN800	901		950	950	1015	1025		24-34	24-40	356
H42H	DN900	1001		1050	1050	1125	1125		28-40	28-40	368
H42H	DN1000	1112		1160	1170	1230	1255		28-43	28-43	432
H42H	DN1200	-		1380	1390	1455	1485		32-49	32-49	524

Hot Tags: Power Station Check Valve, China, Customized, Quality, Awet, Advanced, Produsen, Supplier, Pabrik, ing Simpenan
