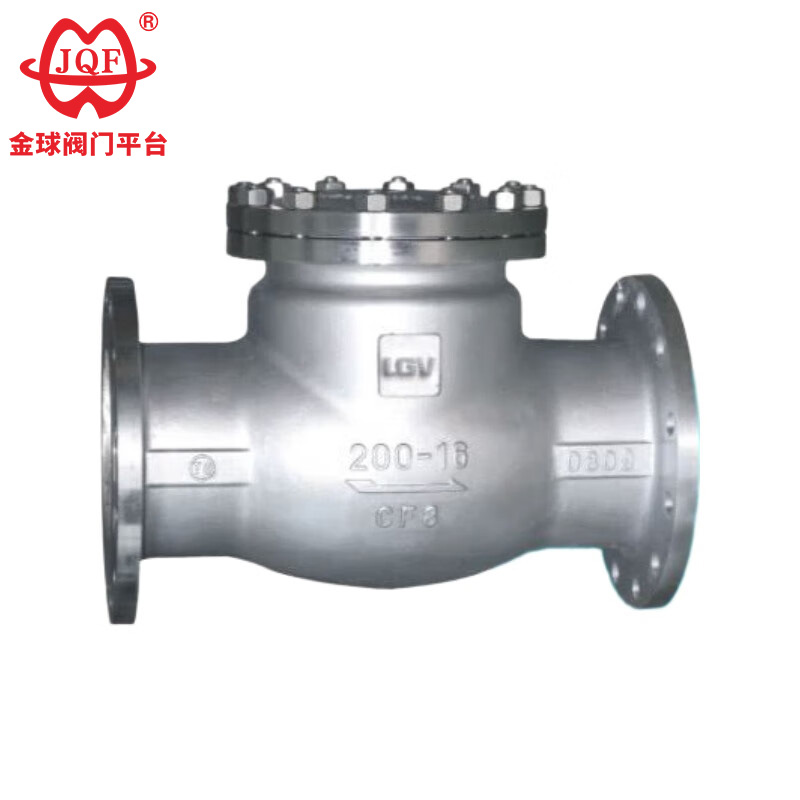

Katup Kontrol Baja Cast Steel sing tahan lama ing pabrik Jinqiu Valve simetris ing sisih loro, ngidini aliran media bidirectional. Instalasi langsung, ngilangi kabutuhan kanggo nimbang arah pipa, lan operasi fleksibel lan trep. Pabrik kita netepi prinsip integritas lan kualitas dhisik. We warmly welcome pitakonan lan pangarep-arep kanggo nggawe hubungan kerjasama long-term karo sampeyan. Kita duwe kaluwihan ing manufaktur, nalika sampeyan duwe kaluwihan ing dodolan. Kita pitados bilih liwat kerjasama, kita bisa entuk kahanan win-win, lan kita ngarep-arep kanggo tuwuh bebarengan!
1. Resistance cairan sing kurang: Medium internal katup mriksa baja cast mili ing garis lurus kanthi resistensi minimal, nggampangake transportasi cairan sing lancar, efisiensi energi, lan kepraktisan.
2. Gampang kanggo mbukak lan nutup: Gapura katup mriksa baja cast gerakane vertikal karo adi, mbutuhake pasukan minimal kanggo mbukak lan nutup, simplifying operasi lan nyimpen biaya pegawe.
3. Arah aliran medium sing ora diwatesi: Katup mriksa baja cast simetris ing sisih loro, ngidini aliran medium bidirectional. Instalasi ora mbutuhake pertimbangan arah aliran pipa, nggawe operasi fleksibel lan trep.
4. Kinerja sealing sing apik banget: Panganggone minimal nalika mbukak kanthi lengkap; nalika ditutup, meksa bisa meksa segel, èfèktif nyegah bocor medium.
| model | H44H-16C~2=-0 | H44W-16P~250 | |
| Tekanan kerja (MPa) | 1.6~25 | ||
| suhu sing tepat (℃) | ≤425 | ≤550 | |
| Media sing cocog | Banyu, uap, lenga | Medium korosif sing lemah | |
| materi | Body, bonet, disk | Baja karbon | Baja tahan karat nikel-titanium krom |
| Sealing lumahing | Baja karbon permukaan wesi basis wesi | Badan disegel | |

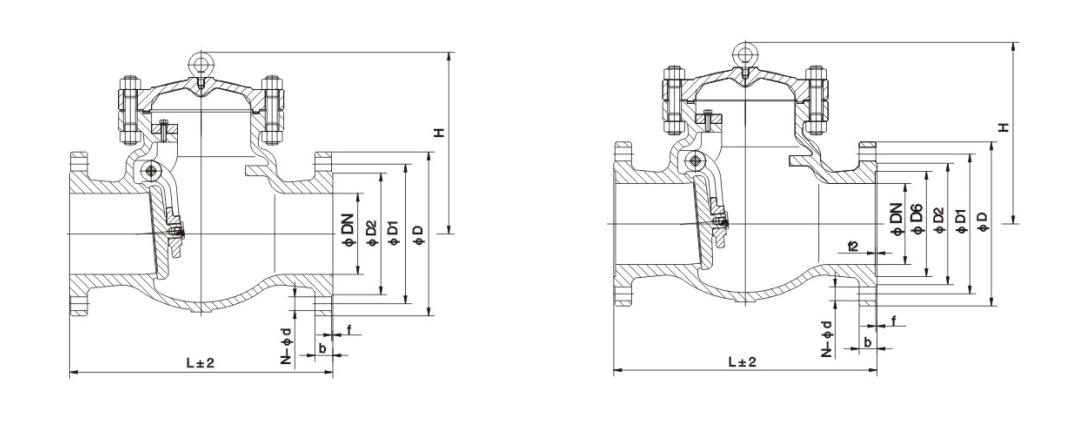

| diameteripun nominalDN | Dimensi utama lan dimensi sambungan | ||||||
| L | D | D1 | D2 | b | Z-d | H | |
| H44H-16C H44W-16C H44W-16P H44W-16R H44W-16I | |||||||
| 25 | 160 | 115 | 85 | 65 | 16 | 4-14 | 100 |
| 32 | 180 | 135 | 100 | 78 | 16 | 4-18 | 105 |
| 40 | 200 | 145 | 100 | 85 | 16 | 4-18 | 115 |
| 50 | 230 | 160 | 125 | 100 | 16 | 4-18 | 135 |
| 65 | 290 | 180 | 145 | 120 | 18 | 4-18 | 142 |
| 80 | 310 | 195 | 160 | 135 | 20 | 8-18 | 165 |
| 100 | 350 | 215 | 180 | 155 | 20 | 8-18 | 180 |
| 125 | 400 | 245 | 210 | 185 | 22 | 8-18 | 210 |
| 150 | 480 | 280 | 240 | 210 | 24 | 8-23 | 233 |
| 200 | 500 | 335 | 295 | 265 | 26 | 12-23 | 304 |
| 250 | 550 | 405 | 355 | 320 | 30 | 12-25 | 348 |
| 300 | 650 | 460 | 410 | 375 | 30 | 12-25 | 390 |
| 350 | 750 | 520 | 470 | 435 | 34 | 16-25 | 430 |
| 400 | 850 | 580 | 525 | 485 | 36 | 16-30 | 468 |
| H44H-25 H44W-25 H44W-25P H44W-25R H44W-25I | |||||||
| 25 | 160 | 115 | 85 | 65 | 16 | 4-14 | 100 |
| 32 | 180 | 135 | 100 | 78 | 16 | 4-18 | 105 |
| 40 | 200 | 145 | 110 | 85 | 16 | 4-18 | 115 |
| 50 | 230 | 160 | 125 | 100 | 20 | 4-18 | 160 |
| 65 | 290 | 180 | 145 | 120 | 22 | 8-18 | 175 |
| 80 | 310 | 195 | 160 | 135 | 22 | 8-18 | 185 |
| 100 | 350 | 230 | 190 | 160 | 24 | 8-23 | 220 |
| 125 | 400 | 270 | 220 | 188 | 28 | 8-25 | 248 |
| 150 | 480 | 300 | 250 | 218 | 30 | 8-25 | 276 |
| 200 | 550 | 360 | 310 | 278 | 34 | 12-25 | 350 |
| 250 | 650 | 425 | 370 | 332 | 36 | 12-30 | 410 |
| 300 | 750 | 485 | 430 | 390 | 40 | 16-30 | 430 |
| 350 | 850 | 550 | 490 | 448 | 44 | 16-34 | 518 |
| 400 | 950 | 610 | 550 | 505 | 48 | 16-34 | 560 |
