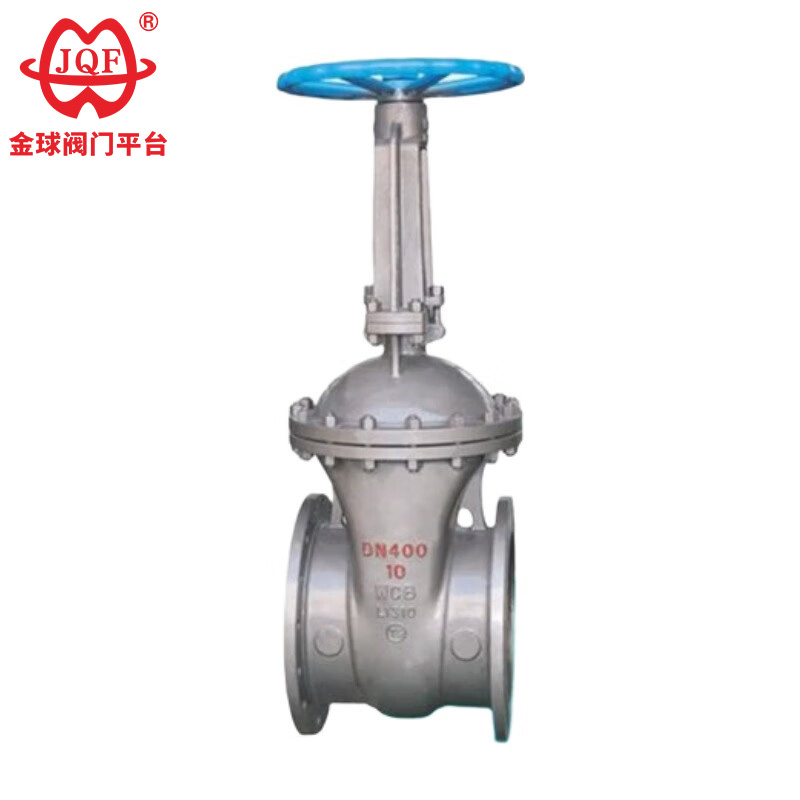

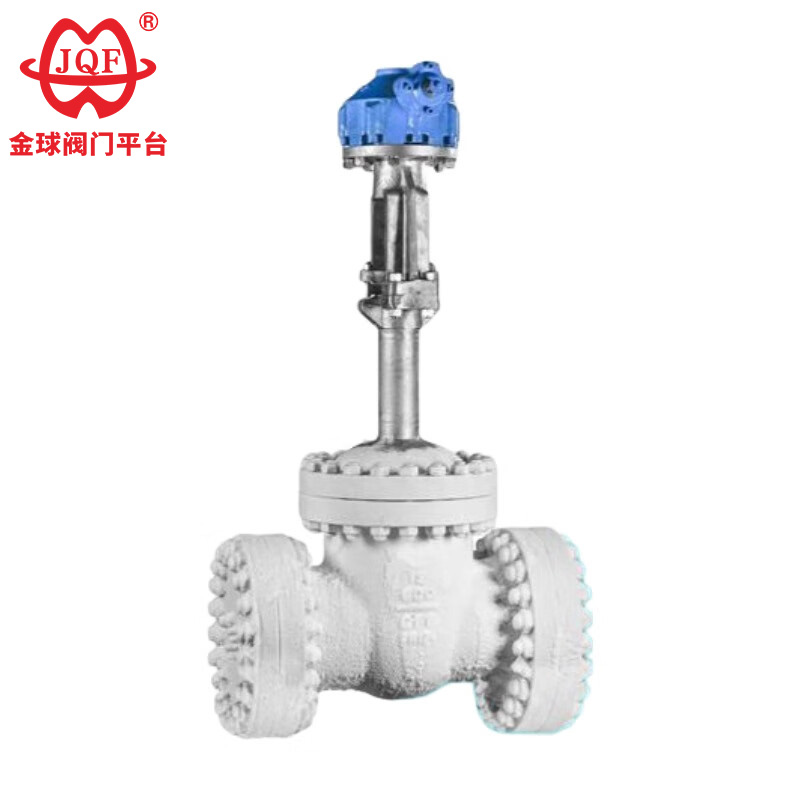

Katup Gerbang Kriogenik Stainless Steel

JQF Valve minangka produsen katup kanthi luwih saka 20 taun ing China, utamane ngasilake katup bal, katup gerbang, katup globe, katup kupu-kupu, lan katup solenoid. Katup gerbang cryogenic stainless steel berkualitas tinggi dirancang khusus kanggo kondisi operasi sing ekstrem kanthi suhu media ing ngisor -46 ° C. Cocog kanggo media cryogenic kayata metana, gas alam cair, hexene, karbon dioksida, amonia cair, oksigen cair, nitrogen cair, lan hidrogen cair.

Kirim Pitakonan

Deskripsi Produk

JQF Valve as a professional manufacturer, is dedicated to providing you with durable stainless steel cryogenic gate valves. These are not just simple cryogenic valves, but specialized equipment with special material selection, structural design, and manufacturing processes. They are widely used in the storage, transportation, and handling systems of cryogenic media such as liquefied natural gas, liquid nitrogen, liquid argon, and liquid carbon dioxide, ensuring reliable opening and closing and tight sealing under cryogenic conditions.

Parameter kinerja

model		DZ40Y-16	DZ40Y-25
Tekanan kerja (MPa)		1.6	2.5
suhu sing tepat (℃)		LC3≥-101，LCB≥-46，LCC≥-46,1Cr18Ni9Ti≥-196
materi	pangisi	Baptist tetrafluoroethylene asbestos tali
	Roda tangan	QT450-10
	Nut batang	ZCuA110Fe3
	Batang katup	1Cr18Ni9Ti
	Gasket	Asbes suhu rendah

Fitur

1. Neutralisasi Tekanan Cavity: Orifice imbangan tekanan sing direkayasa digabungake menyang pasuryan inlet tutup katup gerbang cryogenic stainless steel kanthi aktif netralake diferensial tekanan, nyegah media sing mbebayani saka nglumpukake ing rongga tutup.
2. Thermodynamically Optimized Cover: Ing dhuwur tutup mbosenke diwilang adhedhasar profil suhu operasi kanggo njaga integritas compressive saka packing gagang saindhenging siklus suhu.
3. Kalibrasi Bahan Tribologis: Spesifikasi sing tepat saka cincin pengepakan lan bahan gasket njamin stabilitas kimia sajrone sawetara suhu operasi sing ditemtokake.
4. Penjaminan Kinerja Metalurgi: Komposisi kimia lan struktur kristal saka komponen kasebut divalidasi kanthi ketat kanggo njamin ketangguhan lan daktilitas ing macem-macem suhu.
5. Arsitektur Antarmuka Universal: Macem-macem konfigurasi flange standar lan pilihan morfologi sealing kanggo katup gerbang cryogenic stainless steel nyukupi syarat integrasi pipa global.

Wangun utama lan dimensi sambungan

diameteripun nominal	Dimensi utama lan dimensi sambungan
diameteripun nominal	L	D	D1	D2	b	Z-d	H	D0
Z40Y-16L
20	150	105	75	55	14-2	4-Φ14	320	140
25	160	115	85	65	14-2	4-Φ14	350	160
32	180	135	100	78	16-2	4-Φ18	385	180
40	200	145	110	85	16-3	4-Φ18	420	200
50	250	160	125	100	16-3	4-Φ18	540	240
65	265	180	145	120	18-3	4-Φ18	610	240
80	280	195	160	135	20-3	8-Φ18	690	280
100	300	215	180	155	20-3	8-Φ18	780	300
125	325	245	210	185	22-3	8-Φ18	930	320
150	350	280	240	210	24-3	8-Φ23	980	360
200	400	335	295	265	26-3	12-Φ23	1180	400
250	450	405	355	320	30-3	12-Φ25	1390	450
300	500	460	410	375	30-3	12-Φ25	1620	580
350	550	520	470	435	34-4	16-Φ25	1810	640
400	600	580	525	485	36-4	16-Φ30	1970	640
Z40Y-25
20	150	105	75	55	16-2	4-Φ14	320	140
25	160	115	85	65	16-2	4-Φ14	350	160
32	180	135	100	78	18-2	4-Φ18	385	180
40	200	145	110	85	18-3	4-Φ18	420	200
50	250	160	125	100	20-3	4-Φ18	540	240
65	265	180	145	120	22-3	8-Φ18	610	240
80	280	195	160	135	22-3	8-Φ18	690	280
100	300	230	190	160	24-3	8-Φ23	780	300
125	325	270	220	188	28-3	8-Φ25	930	320
150	350	300	250	218	30-3	8-Φ25	980	360
200	400	360	310	278	34-3	12-Φ25	1180	400
250	450	425	370	332	36-3	12-Φ30	1390	450
300	500	485	430	390	40-4	16-Φ30	1620	580
350	550	550	490	448	44-4	16-Φ34	1810	640
400	600	610	550	505	48-4	16-Φ34	1970	640

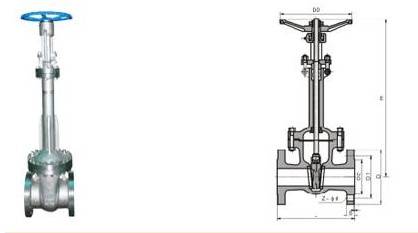

Gambar struktur

Kabeh teks, data lan gambar ing artikel iki mung kanggo referensi. Yen sampeyan pengin ndeleng kinerja produk liyane, ukuran struktur, rega lan rincian liyane. Mangga hubungi kita.
