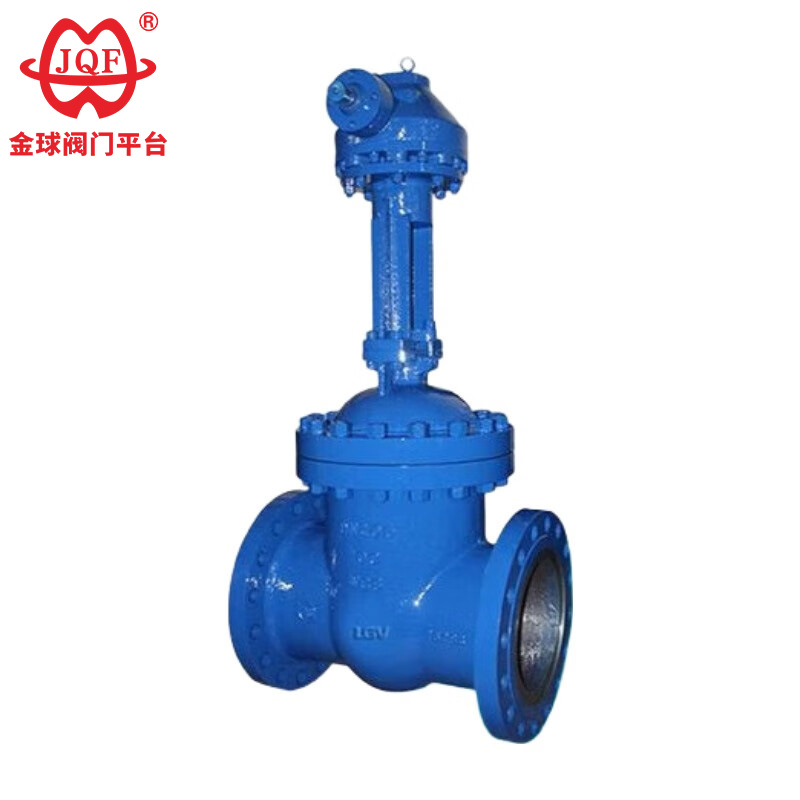

Bevel Gear Gate Valve

JQF Valve minangka produsen lan pemasok katup Cina. Katup gerbang bevel berkualitas tinggi minangka jinis katup gerbang manual sing nggunakake mekanisme transmisi bevel (gear coil) kanggo mbukak lan nutup. Transmisi gear iki entuk efek ngirit tenaga kerja lan nambah torsi, saengga cocog kanggo kontrol gerbang sing tepat lan stabil ing kahanan tekanan dhuwur kanthi diameter gedhe. Katup gerbang bevel kita nawakake kaluwihan rega sing signifikan.

Kirim Pitakonan

Deskripsi Produk

As the professional manufacturer of durable bevel gear gate valve, JQF Valve can also design and manufacture non-standard valve products according to customer requirements, providing you with networked, information-based, and intelligent industrial valves.

Panggunaan produk

Z540H, Z540Y, Z540W jinis PN16 ~ PN160 baja bevel gear mimpin wedge gate valve diprodhuksi dening Lianggu valve Co., Ltd. Bevel gear drive, sambungan flange, wedge-jinis gerbang elastis. Materi lumahing panyegelan kursi lumahing paduan welding (Z540H-16C ~ 160, Z540Y-16C ~ 160, Z540Y-16I ~ 160I, Z540Y-16P ~ 160P, Z540Y-16R ~ 160R, baja tahan karat (Z540Y-16R ~ 160R) Z540W-16R ~ 160R), tekanan nominal PN16 ~ PN160. Materi awak tutup yaiku baja karbon (Z540H-16C ~ 160, Z540Y-16C ~ 160), baja paduan molibdenum krom (Z540Y-16I ~ 160I), baja tahan karat (Z540W-16P ~ 160P, Z540Y-160P ~ 160P, Z540Y-16P ~ 6P 160R, Z540Y- 16R ~ 160R) katup gapura.

Kaluwihan produk:

1. Klep gerbang gear Bevel sing disesuaikan nduweni standar canggih, sealing sing dipercaya, kinerja sing unggul, lan penampilan sing apik.
2. Wedge-shaped struktur plate tutup kanggo ngoper fleksibel.
3. Plate katup lan jog dilas saka alloy Stellite.
4. Valve stem ngalami quenching lan tempering perawatan kanggo meningkat karat lan nyandhang resistance.
5. Multiple standar flange pipa lan jinis permukaan flange sealing kasedhiya.
6. Klep gerbang gear Bevel kualitas dhuwur kasedhiya ing macem-macem bahan awak sing cocog karo tekanan, suhu, lan kahanan media sing beda.

Paramèter kinerja

model	PN	Tekanan kerja/MPa	Suhu operasi / ℃	Media sing cocog
Z540H-16C-160	16-160	1.6-16.0	≤425	Banyu, uap, lenga
Z540Y-16C-160	16-160	1.6-16.0	≤425	Banyu, uap, lenga
Z540H-16I-160	16-160	1.6-16.0	≤550	Uap, lenga
Z540W-16P-40P	16-40	1.6-4.0	≤150	Media korosif
Z540Y-16P-160P	16-160	1.6-16.0	≤150	Media korosif
Z540W-16R-40R	16-40	1.6-4.0	≤150	Media korosif
Z540Y-16R-160R	16-160	1.6-16.0	≤150	Media korosif

Wangun utama lan dimensi sambungan

diameteripun nominal	Dimensi utama lan dimensi sambungan
diameteripun nominal	L	D	D1	D2	b		Z-d	H
Z540H-16C
200	400	335	295	265		26-3	12-Φ23	730
250	450	405	355	320		30-3	12-Φ25	897
300	500	460	410	375		30-3	12-Φ25	1032
350	550	520	470	435		34-4	16-Φ25	1170
400	600	580	525	485		36-4	16-Φ30	1330
450	650	640	585	545		40-4	20-Φ30	1541
500	700	705	650	608		44-4	20-Φ34	1676
600	800	840	770	718		48-5	20-Φ36	1874
700	900	910	840	788		50-5	24-Φ36	2083
800	1000	1020	950	898		52-5	24-Φ41	2400
Z540H-25
200	400	360	310	278		34-3	12-Φ25	730
250	450	425	370	332		36-3	12-Φ30	897
300	500	485	430	390		40-4	16-Φ30	1032
350	550	550	490	448		44-4	16-Φ34	1170
400	600	610	550	505		48-4	16-Φ34	1330
450	650	660	600	555		50-4	20-Φ34	1541
500	700	730	660	610		52-4	20-Φ36	1676
600	800	840	770	718		56-5	20-Φ41	1874
700	900	955	875	815		60-5	24-Φ42	2083
800	1000	1070	990	930		64-5	24-Φ48	2400
