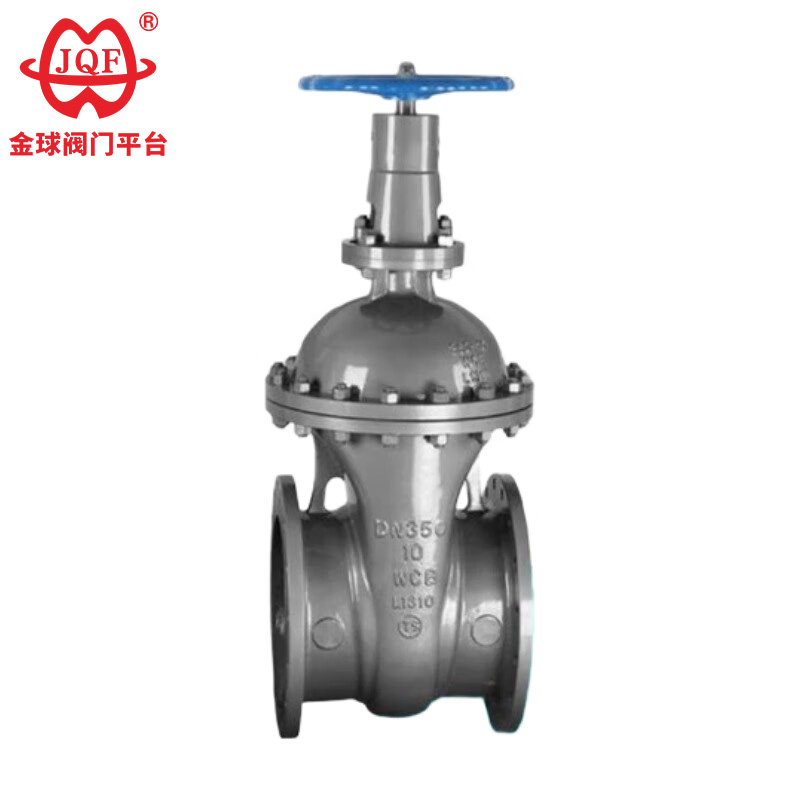

Cast Steel Dark Rod Gate Valve

Pabrik JQF Valve kualitas dhuwur Cast Steel Dark Rod Gate Valve punika cast baja gapura tutup ngendi kacang gagang langsung dipasang ing ndhuwur gapura, lan gagang mung muter tanpa pamindahan sumbu sak mbukak lan nutup. Desain iki ndadekake utamané cocok kanggo aplikasi karo papan instalasi winates.

Kirim Pitakonan

Deskripsi Produk

The Z45H-10C and Z45H-16C Cast Steel Dark Rod Gate Valve in stock manufactured by JQF Valve, a professional valve manufacturer in China, are manual, flange-connected, non-stick wedge-shaped rigid single-plate valves with 13Cr stainless steel seat sealing surface material. The nominal pressure is PN10～PN16, and the valve body material is WCB, which is of high quality and durable.

1. Struktur Kompak, Spasi Instalasi Cilik: Katup Gerbang Rod Gelap Cast Steel sing tahan lama cocok kanggo aplikasi sing dibatesi papan.
2. Dhuwur Cost-Efektivitas: Kanggo klep diameteripun cilik, Cast Steel Dark Rod Gate Valve wis struktur relatif prasaja, duweni potensi asil ing biaya Manufaktur ngisor.
3. Ora diwatesi dening Dhuwur Lingkungan: Cast Steel Dark Rod Gate Valve majeng ora bakal nemokke alangan nduwur sirah minangka gagang tutup mundhak.

Paramèter kinerja

Dibandhingake karo produk katup liyane, Cast Steel Dark Rod Gate Valves diciriake kanthi suhu dhuwur lan tekanan dhuwur, lan desain kedap dhewe sing unik. Sing luwih dhuwur tekanan, sealing luwih dipercaya. Amarga kinerja lan karakteristik teknis, kahanan kerja khusus nggawe produk dadi fitur sing ora bisa diganti karo produk liyane.

Standar desain

model	PN	Tekanan kerja/MPa	suhu sing tepat / ℃	Media sing cocog
Z45H-10C	10	1.0	≤425	banyu
Z45H-16C	16	1.6	≤425	banyu

Bahan bagean utama

model	materi
model	Badan, kap mesin, piring katup	Batang katup	Sealing lumahing	pangisi
Z45H-10C	WCB	Baja tahan karat krom	13Cr	Grafit fleksibel
Z45H-16C	WCB	Baja tahan karat krom	13Cr	Grafit fleksibel

Wangun utama lan dimensi sambungan

diameteripun nominal	Dimensi utama lan dimensi sambungan
diameteripun nominal	L	D	D1	D2	Z-d	H
Z45H-10C
50	178	165	125	102	4-Φ19	285
65	190	185	145	122	4-Φ19	305
80	203	200	160	138	8-Φ19	330
100	229	220	180	158	8-Φ19	405
125	254	250	210	188	8-Φ19	460
150	267	285	240	212	8-Φ23	506
200	292	340	295	268	8-Φ23	610
250	330	395	350	320	12-Φ23	730
300	356	445	400	370	12-Φ23	950
Z45H-16C
50	178	165	125	102	4-Φ19	285
65	190	185	145	122	4-Φ19	305
80	203	200	160	138	8-Φ19	330
100	229	220	180	158	8-Φ19	405
125	254	250	210	188	8-Φ19	460
150	267	285	240	212	8-Φ23	506
200	292	340	295	268	12-Φ23	610
250	330	395	350	320	12-Φ28	730
300	356	445	400	370	12-Φ28	950
350	381	520	470	438	16-Φ28	1125
400	406	582	525	490	16-Φ31	1200

Hot Tags: Cast Steel Dark Rod Gate Valve, China, Customized, Quality, Awet, Advanced, Produsen, Supplier, Pabrik, ing Simpenan
