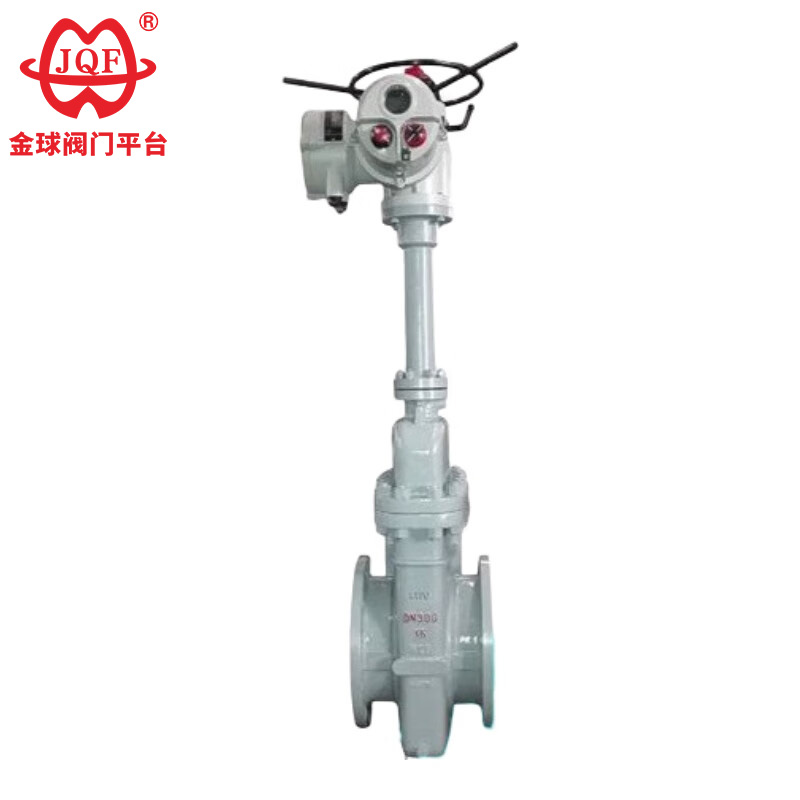

Listrik Flat Gate Valve

Foshan Jinquan Valve Co., Ltd. is a leading industrial valve manufacturer. Our core products include ball valves, butterfly valves, gate valves, globe valves, and check valves, as well as a wide range of valves suitable for various applications. Our electrical flat gate valves are driven by electric actuators, achieving fluid flow by raising and lowering a gate. Due to their structural advantages and technical parameters, they are widely used in fluid shut-off and control scenarios in industrial piping systems. Wherever you are located or what your customization needs may be, our years of experience will support you. If you are interested in our products, please feel free to contact us!

1. Klasifikasi miturut Metode Aktuasi: Katup gerbang paralel manual, katup gerbang paralel pneumatik, katup gerbang paralel listrik
2. Klasifikasi miturut Skenario Aplikasi: Katup gerbang paralel jinis orifice, katup gerbang paralel non-orifice, katup gerbang paralel khusus ladang minyak, katup gerbang paralel transportasi pipa, katup gerbang paralel sistem gas

Fitur Struktural

1. Ngambang Bidirectional Seal
Kursi ngambang katup gapura warata listrik ngidini mbukak lan nutup bidirectional, njamin panyegelan sing dipercaya lan operasi sing fleksibel.
2. Hard Corrosion-Tahan Guide Material
Gerbang kasebut dilengkapi jalur pandhuan kanggo posisi sing tepat, lan permukaan sealing dilapisi lapisan anti-karat tungsten karbida.
3. Desain Resistance Aliran Zero
Awak tutup saka tutup gapura warata electrical wis resistance dhuwur meksa; nalika mbukak kanthi, path aliran terus-liwat kira-kira saka pipa diameteripun padha (resistance aliran ≤0.03).
Batang katup nggunakake segel multi-tataran kanthi kemasan komposit, nyuda koefisien gesekan kanthi 40%.
4. Dual-Stage Mekanisme Sealing
Nalika nutup searah jarum jam:
Tekanan medium nyurung kursi katup inlet kanggo mbentuk segel utama.
Gapura meksa ing jog tutup stopkontak kanggo mbentuk segel pindho.
5. Revolusioner Online Maintenance
Struktur segel pindho ngidini kanggo ngganti bagean nyandhang tanpa ngganggu produksi; teknologi iki anjog antarane produk padha loro domestik lan internasional.
6. Kontrol mbukak lan nutup progresif
Nalika mbukak counterclockwise, gapura mundhak, lan bolongan guide mboko sithik tumpang tindih karo saluran, nampa 100% bukaan lengkap ing posisi nemen.

Standar Desain

Paramèter kinerja

Wangun utama lan dimensi sambungan

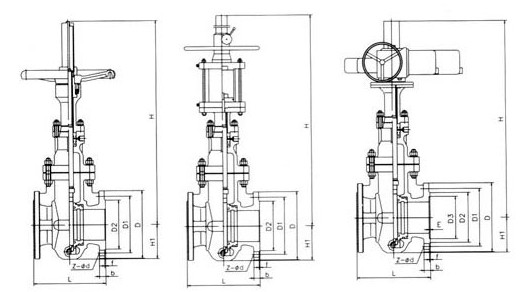

Gambar struktur
