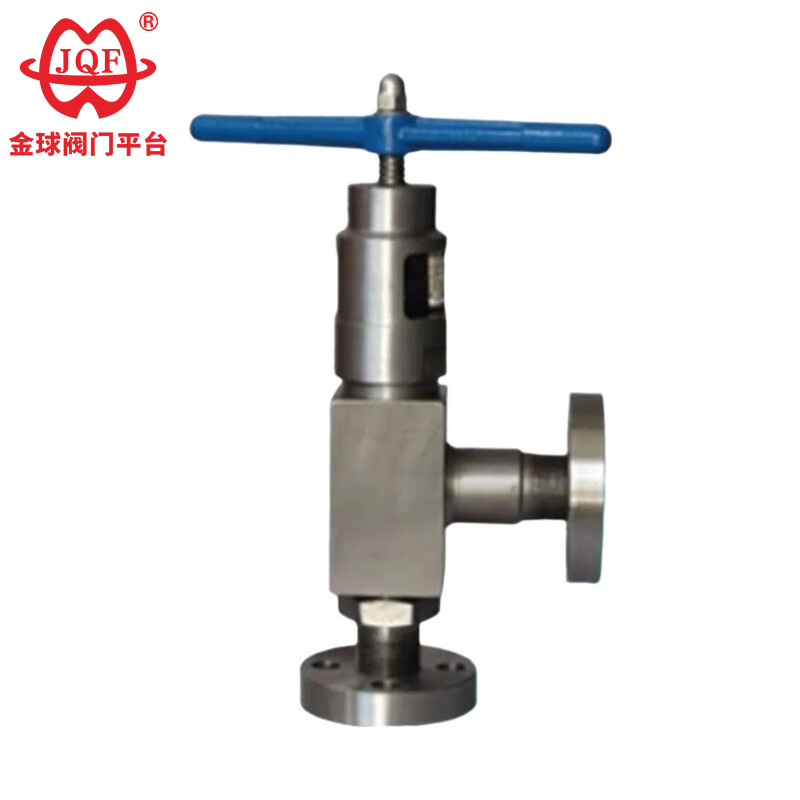

Katup Globe Tipe Sudut Tekanan Tinggi

JQF Valve minangka pabrik tutup lan pabrikan ing China, sing melu layanan lan perdagangan katup bal baja tahan karat lan baja karbon, katup gerbang, katup globe, katup mriksa, lan liya-liyane. Iku awet lan gampang kanggo njaga. Kita nyedhiyakake solusi katup siji-mandeg, berkualitas tinggi kanggo para pelanggan ing saindenging jagad.

Kirim Pitakonan

Deskripsi Produk

The biggest advantage of this customized high pressure angle type globe valve manufactured by Foshan Jinqiu Valve Co., LTD. supplier is that it can be installed at bends in piping systems, eliminating the need for 90° elbows and simplifying operation. This type of valve is ideally suited for use in synthetic ammonia production systems and refrigeration systems in fertilizer plants. For example, models J44H-160, J44H-320, L44H-160, and L44H-320 are all specifically designed for ammonia production systems.

Kenapa Pilih Kita?

Pilihan akeh model:
We offer sawetara saka sudhut diameteripun dhuwur tekanan dhuwur jinis amba tutup globe saka DN15 kanggo DN200, uga kelas meksa beda kayata 1.6MPa lan 2.5MPa (ndeleng tabel specification ndhuwur) kanggo nyukupi tata letak pipa lan syarat tekanan.
Dhukungan layanan sampurna:
Konsultasi profesional: Tim teknis kita bisa nyedhiyakake dhukungan pilihan kanggo mesthekake yen katup cocog karo sistem sampeyan.
Jaminan Kualitas: Kita nyedhiyakake wektu garansi sing jelas kanggo produk lan ndhukung tes sampel.
Logistik sing trep: Kemasan bundling sing kuat, komponen kunci duwe kode warna sing jelas, trep kanggo sampeyan ngitung lan nginstal ing situs, kita uga bisa ngatur transportasi internasional sing efisien.

Standar Implementasi

Tindakake aturan	STANDAR
Desain lan manufaktur	GB 12233/GB 12235
Dawane struktur	GB 12221/JB96（Seri panjang）
Dawane struktur	GB78/JB79（GB,HG,SH）
Tes tekanan	GB/T 13927
mlebu	GB 12220
kasedhiyan	GB/T12252

Angle valve/throttle 1.6MPa ukuran sambungan utama

DN	L	D	D1	D2	f	b	z-φd	Apa	H1	H2
15	65	95	65	45	2	14	4-φ14	100	240	265
20	75	105	75	55	2	16	4-φ14	100	245	270
25	80	115	85	65	2	16	4-φ14	120	250	275
32	95	135	100	78	2	18	4-φ18	140	260	290
40	100	145	110	85	2	18	4-φ18	140	290	325
50	115	160	125	100	2	20	4-φ18	160	300	335
65	145	180	145	120	2	20	4-φ18	180	355	400
80	155	195	160	135	2	22	4-φ18	240	400	450
100	175	215	180	155	2	24	8-φ18	240	455	495
125	200	245	210	185	2	26	8-φ18	280	530	560
150	240	280	240	210	2	28	8-φ23	320	605	650
200	275	335	295	265	2	30	8-φ23	360	650	770

Angle valve/throttle 2.5MPa ukuran sambungan utama

DN	L	D	D1	D2	f	b	z-φd	Apa	H1	H2
15	65	95	65	45	2	16	4-φ14	120	245	270
20	75	105	75	55	2	16	4-φ14	120	250	275
25	80	115	85	65	2	16	4-φ14	140	260	290
32	95	135	100	78	2	18	4-φ18	140	290	325
40	100	145	110	85	3	18	4-φ18	160	300	335
50	115	160	125	100	3	20	4-φ18	180	355	400
65	145	180	145	120	3	22	8-φ18	220	400	450
80	155	195	160	135	3	22	8-φ18	280	450	495
100	175	230	190	160	3	24	8-φ23	320	530	590
125	200	270	220	188	3	28	8-φ25	380	600	650
150	240	300	250	218	3	30	8-φ25	400	650	770
200	275	360	310	278	3	34	12-φ23	450	700	850
